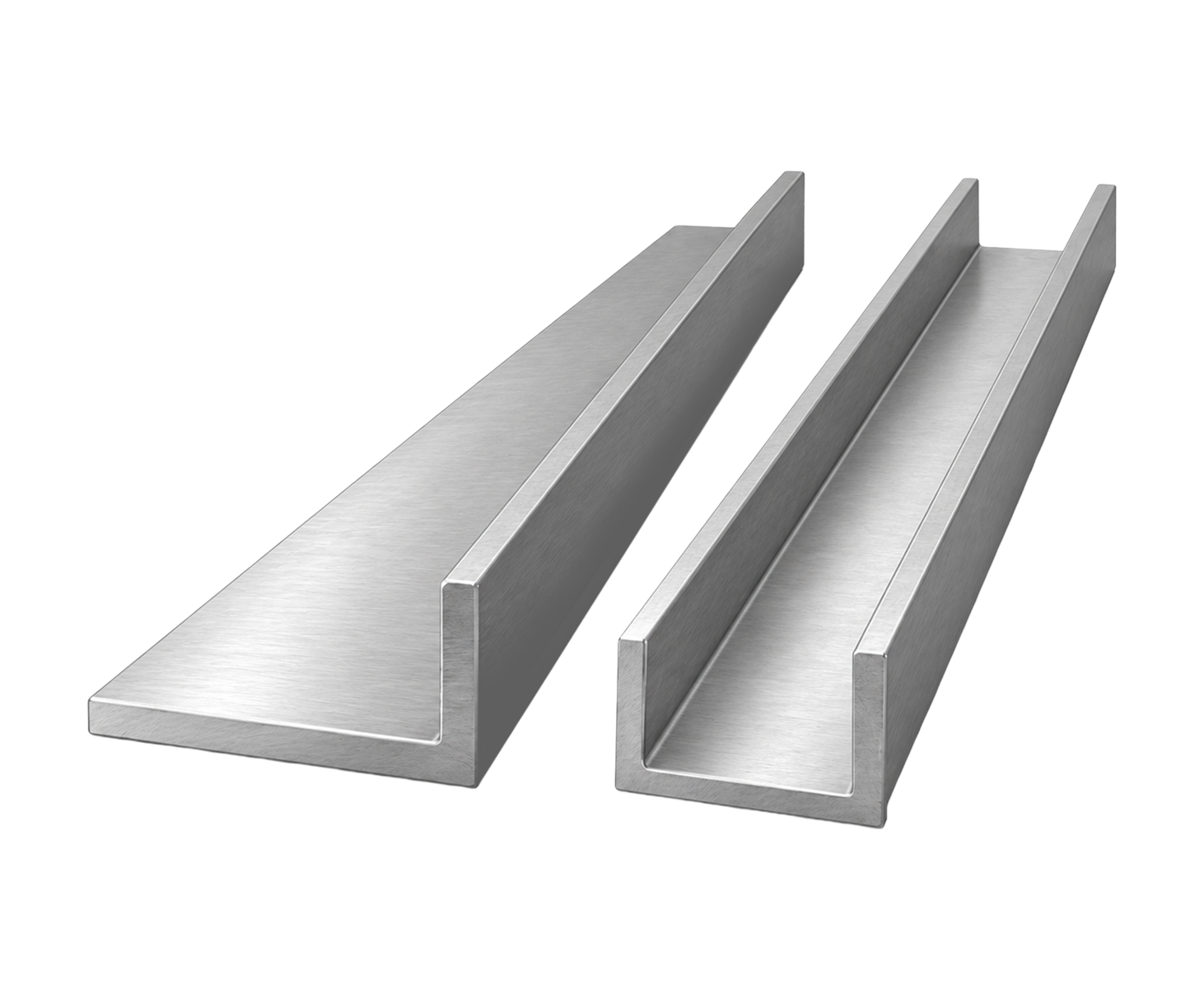

Size(mm) · Weight(kg) · 기준 규격

• Size (mm)Weight (kg)
• 3t × 25 × 251.11
• 3t × 30 × 301.35
• 4t × 30 × 301.77
• 3t × 40 × 401.83
• 4t × 40 × 402.41
• 5t × 40 × 402.97
• 4t × 50 × 503.04
• 5t × 50 × 503.76
• 6t × 50 × 504.47
• 6t × 65 × 655.89
• 6t × 75 × 756.85
• 9t × 75 × 7510.06
• 9t × 100 × 10013.63
• 10t × 100 × 10015.06

※ 그 외 사이즈 별도 문의

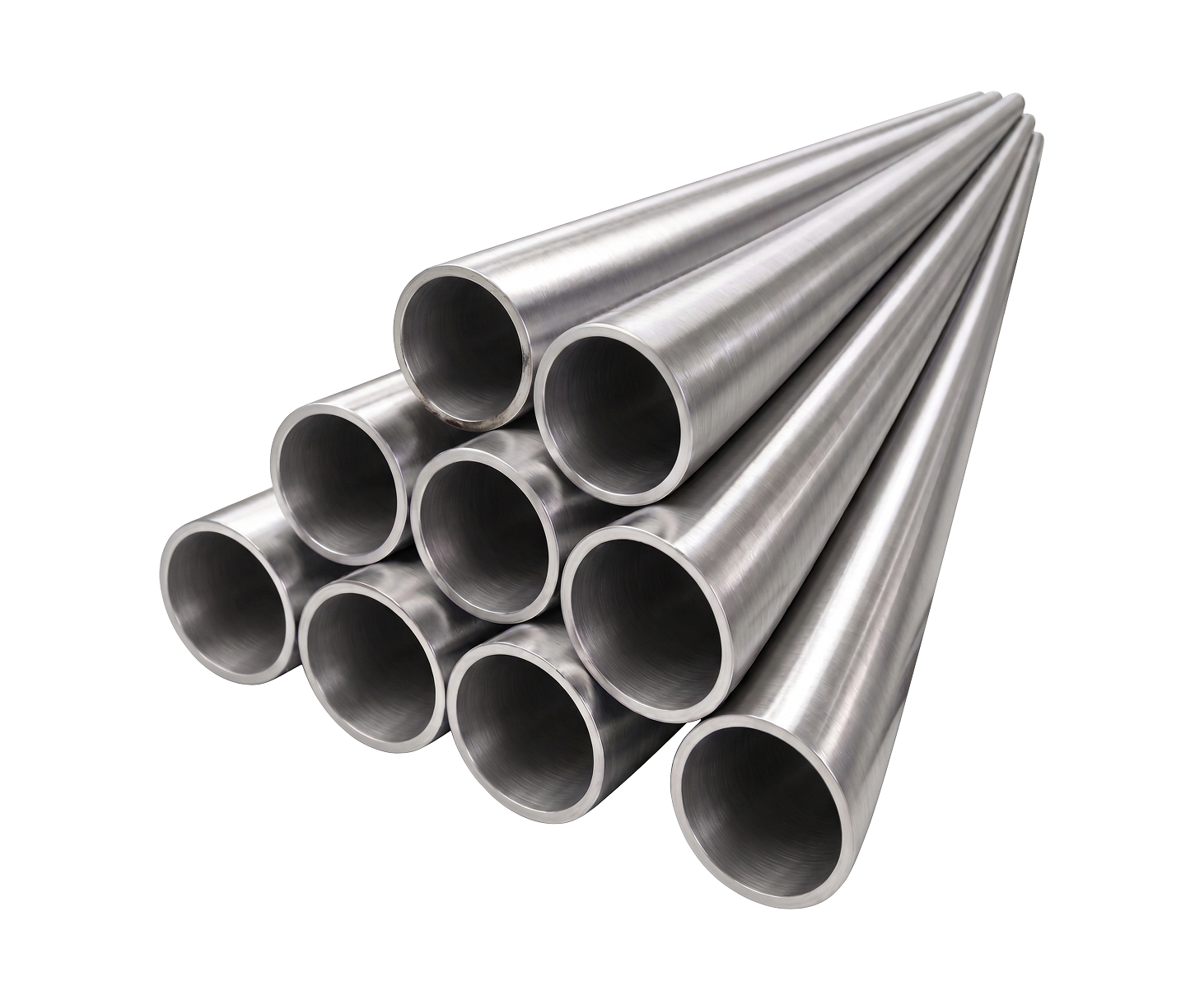

호칭경 A/B · O.D.(mm) · 호칭두께 / 중량(kg/m)

※ 그 외 사이즈 별도 문의

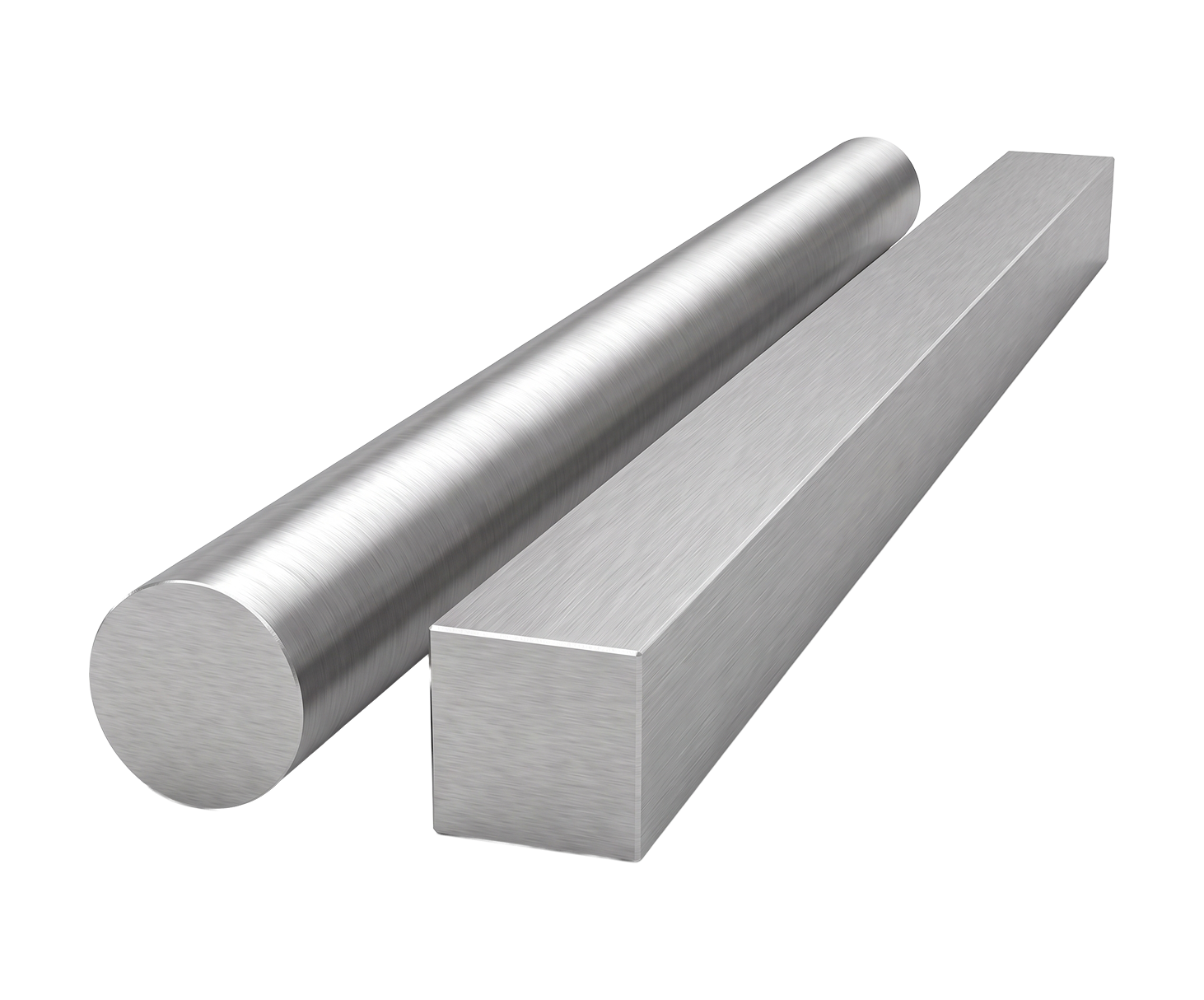

SIZE · 중량(kg/m) · 환봉(0.7854D²) / 사각(D²) / 육각(0.8660D²)
사각 열의 인치 표기는 해당 SIZE의 인치 환산 규격입니다.

• SIZE환봉사각육각
• 4.760.144/16"-
• 50.188--
• 60.2240.2850.247
• 6.350.25¼"-
• 70.3050.3880.336
• 7.940.395/16"-
• 80.3980.5070.439
• 90.5040.6420.556
• 9.520.56⅜"-
• 100.6220.7930.686
• 110.7530.9590.831
• 120.8961.1410.988
• 12.71½"-
• 131.0521.341.16
• 141.221.5541.346
• 151.41.7841.545
• 15.871.56⅝"-
• 161.5932.031.758
• 192.2472.8622.479
• 19.052.28¾"-
• 202.493.1722.747
• 223.0123.8383.324
• 22.223⅞"-
• 253.894.9564.292
• 25.43.981"-
• 284.886.2175.384
• 305.6027.1376.18
• 31.756.21¼"-
• 326.3748.127.032
• 34.927.591⅜"-
• 357.6259.7148.413
• 388.98811.459.917
• 38.18.951½"-
• 409.9612.68810.988
• 4210.9813.98812.114
• 4412.05115.35213.296
• 44.4512.21¾"-
• 4512.60516.05813.907
• 5015.56219.82517.169
• 50.815.92"-
• 53.9717.962⅛"-
• 5518.8323.98820.775
• 6022.4128.54824.723
• 60.3222.432⅜"-
• 63.524.862½"-
• 6526.333.50429.016
• 69.85302¾"-
• 7030.50228.85733.652
• 7535.01544.60638.631
• 76.235.843"-
• 8039.8450.75243.952
• 8544.97557.29449.619
• 88.948.843½"-
• 9050.42264.23355.628
• 9555.6471.56861.981
• 95.2555.913¾"-
• 10062.6479.368.677
• 101.663.644"-
• 10568.63187.42875.717
• 11075.32395.95783.11
• 114.380.544½"-
• 11582.326104.87490.826
• 12089.64114.19298.875
• 130105.203134.017116.065
• 140122.01155.428134.608
• 150140.063178.425154.524
• 160159.361203.008175.815
• 170179.691229.177198.478
• 180201.691256.932222.515
• 190224.724286.273247.926
• 200249.002317.2274.711
• 250389.065495.625429.236

※ 그 외 사이즈 별도 문의 · unit : kg/m
