FACILITIES

YGS will be always pursuing your requests promptly and precisely to present you
the new value through the best performance

HR LINE

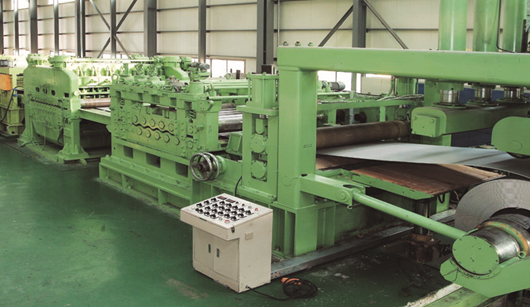

Hot Rolled Shearing

FACILITY_HR Shearing
HR SHEAR LINE
Thickness 3T ~ 13T
Width 180 ~ 2,000mm
Length* 800 ~ 12,000mm
Coil Weight 25 MT
Speed 20m/min (base th’k : 6mm)
Capacity 36,000 MT/Year
Tolerance (L) ± 0.5mm

Hot Rolled Slitter

FACILITY_HR Shearing
Hot Rolled Slitter Line
Thickness 2 ~ 13mm
Width 65 ~ 2,000mm
Coil O.D. 1,800mm
Coil Weight 25 MT
Speed 30m/min (base th’k: 9mm)
Capacity 14,000 MT/Year
Tolerance (W) ± 0.5mm

Narrow Width Slitter

FACILITY_HR Shearing
HR SHEAR LINE
Thickness 3 ~ 6mm
Width 20 ~ 300mm
Coil O.D. 1,500mm
Coil Weight 4MT
Speed 50m/min (base th’k: 5mm)
Capacity 1,200 MT/Year
Tolerance (W) ± 0.5mm
